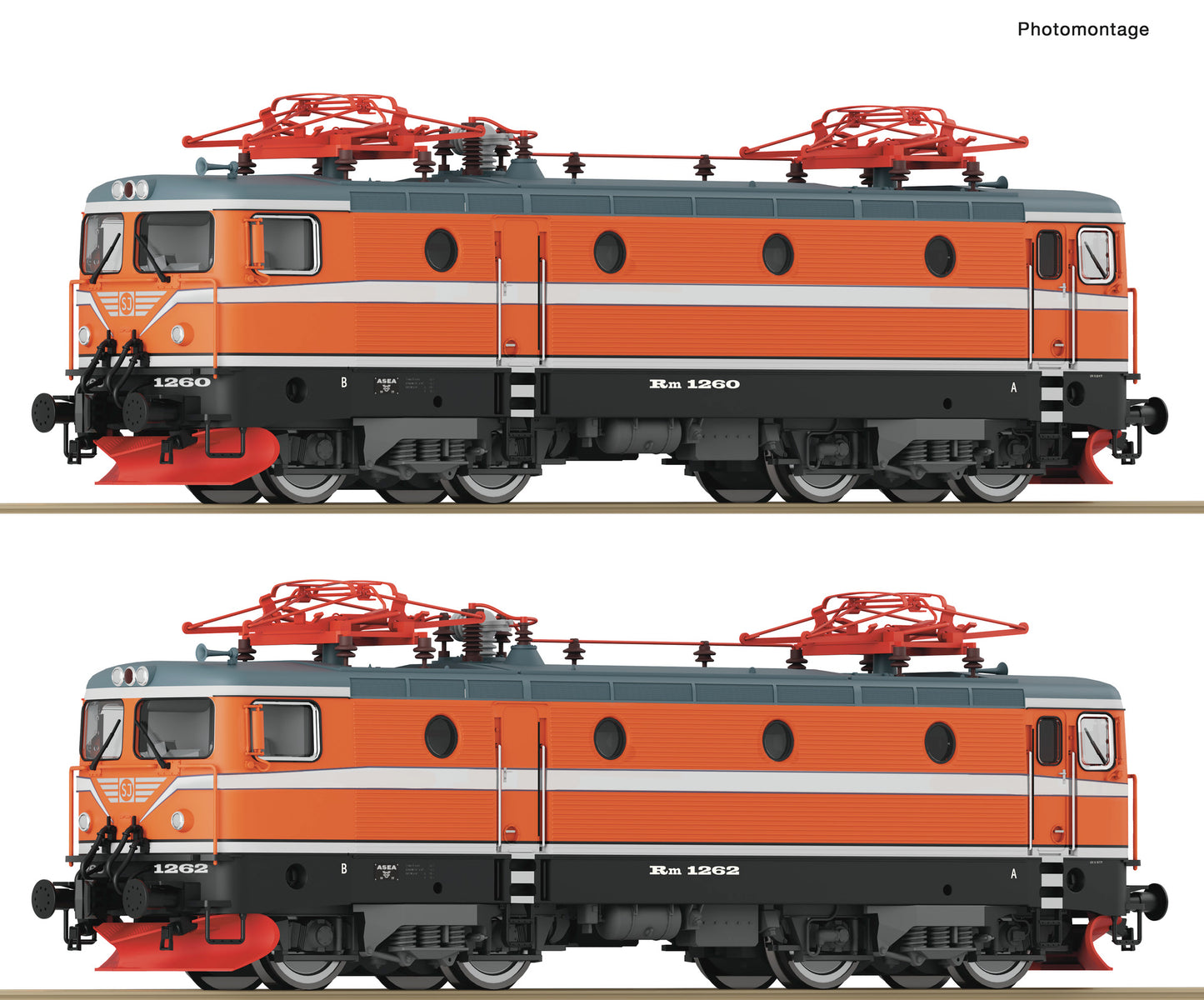

Roco HO 7520048 2-piece set: Electric locomotives Rm SJ era IV AC Sound 2024 New Item

Locomotive set with two Rm electric locomotives of the Swedish State Railway.

Form variation!

- Design in original condition
- Prototypical front with replica of the automatic coupling
- Both locomotives fully equipped
- With switchable high beam and individually switchable headlight or tail light in digital mode

As a replacement for the three-part electric locomotives with rod drive of the class Dm3, six Rm 1257 - 1262 units based on the Rc4 were built in the 1970s for ore transport on the Kiruna - Narvik line, with a higher weight, different transmission and lower top speed (only 100 instead of 135 km/h). Initially, the units were used in triple traction Rm+Rm+Rm; later the composition was changed to Rm+Rc4+Rm.
However, their expected success did not materialise as desired, meaning that the tried and tested Dm3s continued to pull the ore trains and the Rms, after several conversions, were used as individual units in regular freight train service.

General data

Coupling	NEM shaft 362 without close coupling mechanism
Minimum radius	358 mm
Flywheel	yes
Number of driven axles	6
Number of axles with traction tyres	4
Article number	7520048
Scale	H0
Epoch	IV
Railway Company	SJ

Electrical

Motor	5-pole motor
Head light	Light changeover true to the Swedish original.
LED head light	yes
Additional light function	yes
Control	AC
Interface	Electrical interface for traction units PluX22
Digital decoder	PluX22
Decoder-Type	MS450P22
Sound	yes
Buffer capacitor	yes

Measurements

Length over buffer

358 mm
