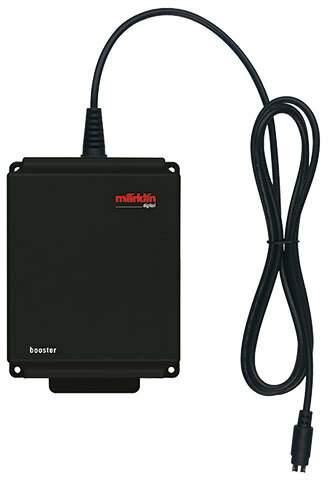

Marklin HO 60175 Booster for Central Station
System: 3 Rail AC
Performance booster for large digitally controlled layouts. This unit is multiprotocol capable in conjunction with the 60216, 60226, and 60213-60215 Central Station. Connections are made by means of a 7-conductor data bus line directly to the 60213-60215 Central Station. Several Boosters can be used in a system by means of the 60125 Terminal. The Booster automatically registers itself in the 60216, 60226, and 60213-60215 Central Station. The status display is done with an LED on the Booster and graphically in the display window for the Central Station. When using the 60061 switched mode power pack there is a maximum power output of 58 VA and a maximum current of 3 amps (with 60216, 60226 or 60215 with the 60101 switched mode power pack there is a maximum current of 5 amps, recommended only for 1 Gauge. Please note that the wire size must be 0.5 square millimeters / 20 gauge or larger!). Dimensions 150 mm x 110 mm x 80 mm / 5-7/8\' x 4-5/16\' x 3-1/8\'.
