Marklin 1 Gauge 55127 Steam Locomotive BR 02 0314-1 DR IV Summer 2022
Class 02 Steam Locomotive
Prototype: German State Railroad (DR/GDR) of East Germany express train steam locomotive, road number 02 0314-1, with oil main firing and an oil tender. Converted version as an experimental locomotive for the VES-M Halle (Saale) (Railroad Research and Development Locomotive Management Department). Version with a "Reko" (rebuilt) boiler and partial streamlining, based on road number 18 314 (former Baden class IV h). Witte smoke deflectors and an inductive magnet on one side included. The locomotive looks as it did around 1970/71.
Highlights
- Completely new tooling.
- Highly detailed full metal construction.
- Frame, superstructure, boiler, etc. constructed of die-cast zinc, separately applied parts constructed of brass.
- Decoder generation with a current buffer and up to 32 functions.
- Smoke unit with smoke exhaust and f/r cylinder steam synchronized with the wheels and a steam whistle.
- Special function: The locomotive engineer activates the controller (servo activated)
- Load-controlled operating sounds synchronized with the wheels.
- Smoke box door and dome hatches can be opened, many original details included.
- Headlights with a light color correct for the era and warm white LEDs.
- Red marker light that can be controlled.
- Cab lighting.
- mfx decoder for operation with AC power, DC power, Märklin Digital, and DCC.
- Valve gear switchover (forward, reverse, continuous operation) in 3 steps with a servomotor.
- Telex coupler on the rear, reproduction prototype coupler on the front (one (1) more of each included with the locomotive).

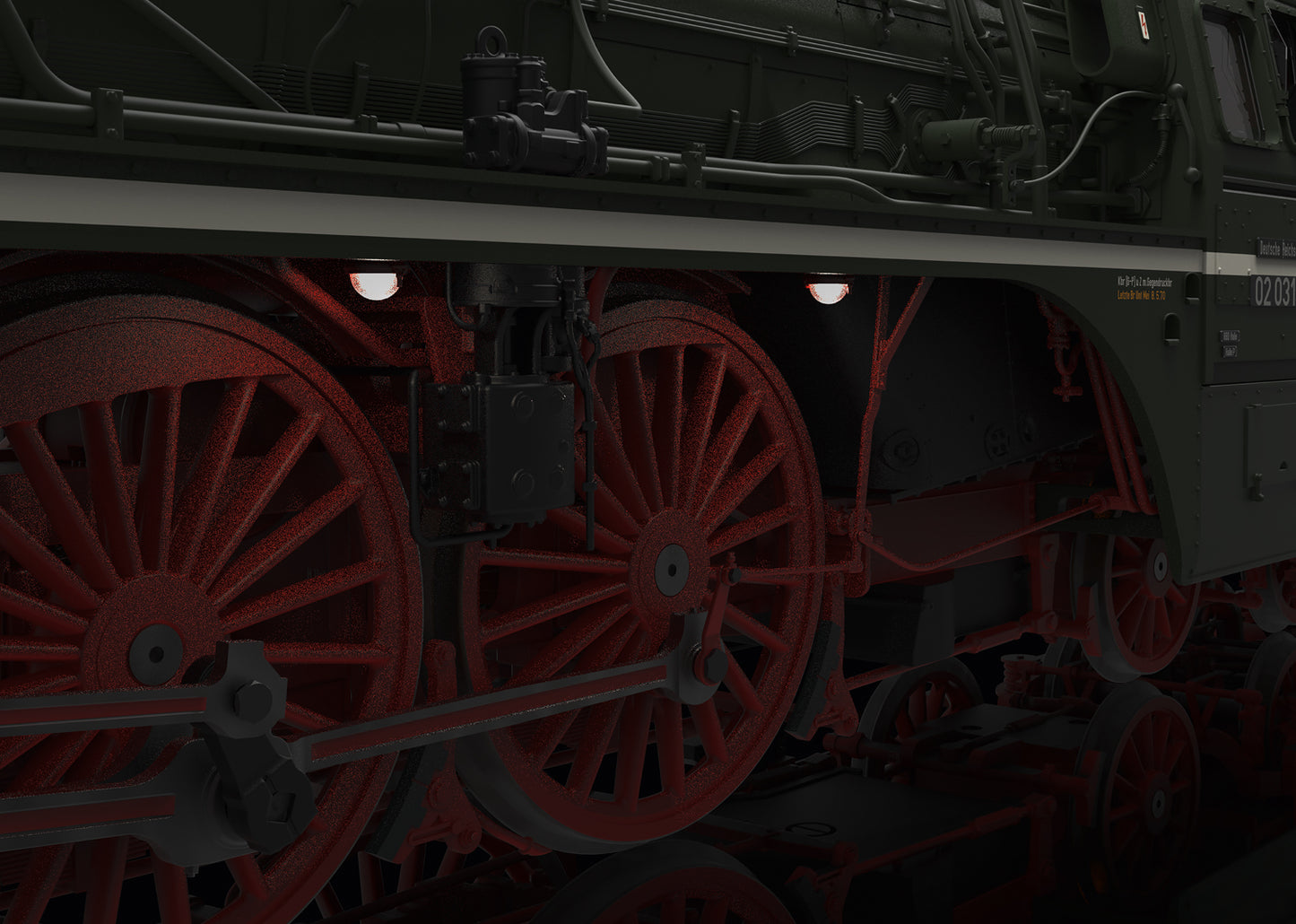

Model: The locomotive is completely new tooling and is constructed of metal. It has a frame, superstructure with boiler, and cab constructed of die-cast zinc. Other separately applied parts are mostly constructed of brass. This is a highly detailed model with many separately applied parts and a highly detailed engineer's cab. The smoke box door can be opened. The cab doors and much more can be opened. The locomotive has an mfx digital decoder with 32 functions, controlled high efficiency propulsion, and a sound generator with operating sounds synchronized with the wheels as well as extensive sound functions. It can be operated with AC power, DC power, Märklin Digital, and DCC. The locomotive has a built-in buffer capacitor. All driving axles powered. The locomotive has a built-in smoke unit with smoke exhaust and multi-step cylinder steam synchronized with the wheels and a steam whistle. The locomotive has running gear lights and triple headlights with a light color correct for the era and that change over with the direction of travel. The headlights will work in conventional operation and can be controlled digitally. Maintenance-free, warm white LEDs are used for the lighting.
The locomotive has a red marker light that can be controlled. The locomotive has cab lighting and multi-colored firebox lighting (flickering). Digitally controlled special function: The locomotive engineer activates the controller (movement activated with a servo as when the locomotive engineer activates the controller in real life). The locomotive comes with sprung buffers. There is a reproduction of the prototype coupler on the front and a remote-controlled Telex coupler on the rear of the tender, which can be replaced by the other type of coupler. The valve gear switchover is in 3 steps (forward, reverse, continuous operation). There is a built-in figure of a locomotive engineer.
An accessory package with a reproduction of the prototype coupler, smoke fluid, and gloves are included with the locomotive. The locomotive is mounted on an aluminum base painted black for display purposes. Minimum radius for operation 1,020 mm / 40-3/16". Length over the buffers 73.8 cm / 29". Weight approximately 9.2 kilograms / 20 pounds 4 ounces.
The "Schorsch" – A Unique One-of-a-Kind on the German State Railroad (DR). Road number 18 314 of the German State Railroad (DR) of the GDR, a steam locomotive later known as the "Schorsch", had an unusual, astonishing life story. Once put into service in 1919 as a Baden class "IV h" "classy runner", the DRG took over this unit as road number 18 314. After the end of World War II, it went to the Soviet Zone in exchange for an S 3/6, where the later VES-M Halle (Railroad Research and Development Locomotive Management Department) urgently needed a fast four-cylinder compound steam locomotive for experimental runs. In 1960, it was equipped with a rebuilt boiler, partial streamlining, a new cab, and tender in order to go even faster. The final "i" was dotted in 1967 when it was converted to oil firing. At the end of 1971, it was put into storage and sold to West Germany in 1984 in die BRD. Since 1986, it has formed one of the showpieces in the Automotive and Technology Museum in Sinsheim. It is on permanent loan from the HEF.
CONTROL UNIT | MOBILE STATION | MOBILE STATION 2 | CENTRAL STATION 1/2 | CENTRAL STATION 3/2* MOBILE STATION 2** |
|
---|---|---|---|---|---|
Headlight(s) | |||||
Smoke generator | |||||
Steam locomotive op. sounds | |||||
Locomotive whistle | |||||
Telex coupler on the rear | |||||
Engineer’s cab lighting | |||||
Sanding | |||||
Special Function | |||||
Direct control | |||||
Sound of squealing brakes off | |||||
Switching range + switching light | |||||
"Switcher Double ""A"" Light" | |||||
Light Function | |||||
Injectors | |||||
Water Pump | |||||
Special sound function | |||||
Marker light(s) | |||||
Whistle for switching maneuver | |||||
Conductor's Whistle | |||||
Letting off Steam | |||||
Air Pump | |||||
Surrounding sounds | |||||
Safety Valve | |||||
Light(s) for Oncoming Train | |||||
Special sound function | |||||
Replenishing fuel | |||||
Replenishing water | |||||
Replenishing sand | |||||
Switching maneuver | |||||
Rail Joints | |||||
Special sound function | |||||
Special sound function |
* New features of the Central Station 2 (Part No. 60213, 60214 or 60215) with the software update 4.2
** New features of the Mobile Station 2 (Part No. 60657/66955) with the Software Update 3.55
System: AC
Sound: Y
Country: Germany
Era: IV
Railroad: BR
EAN: 4001883551272
Availability: In Stock
