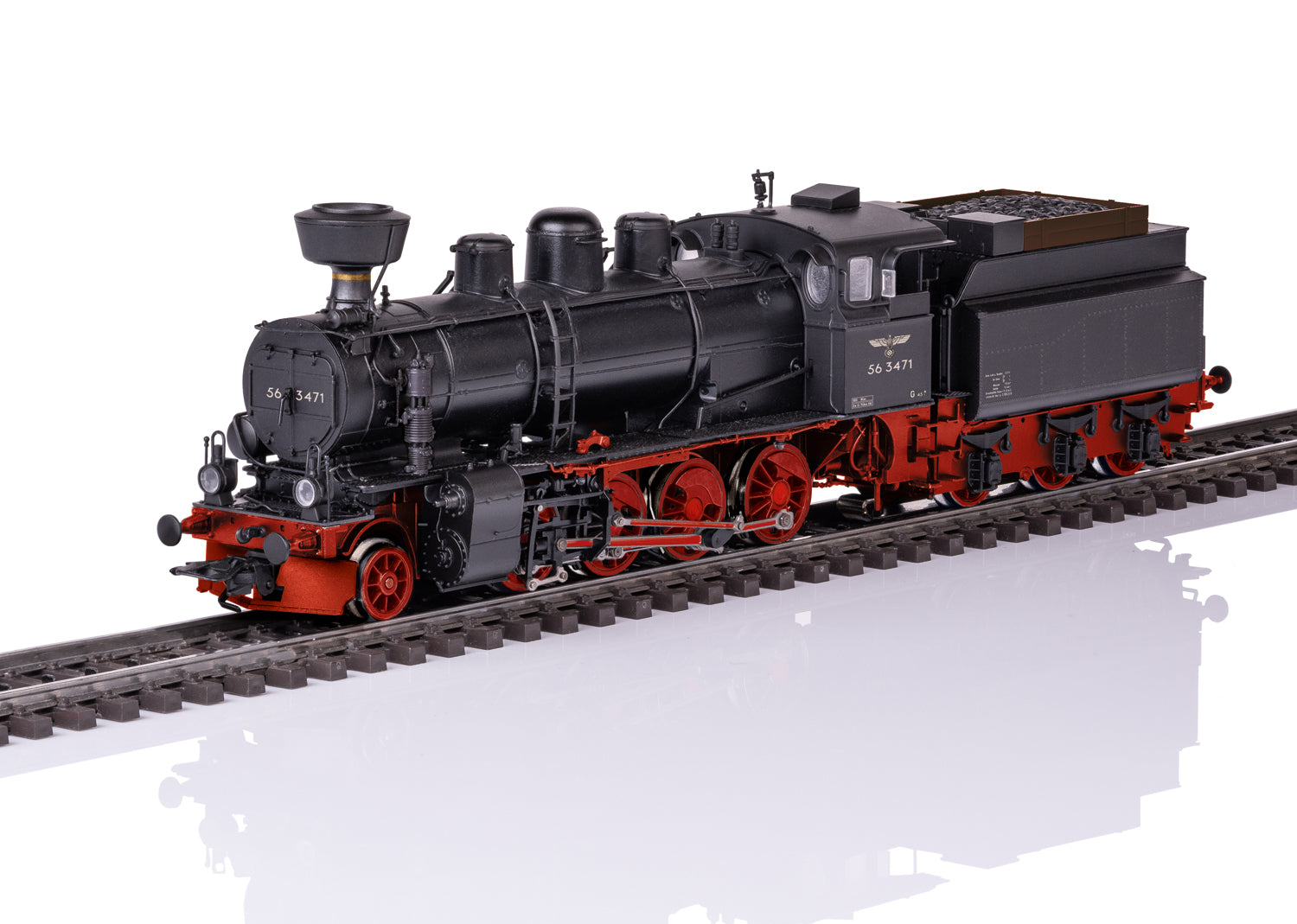

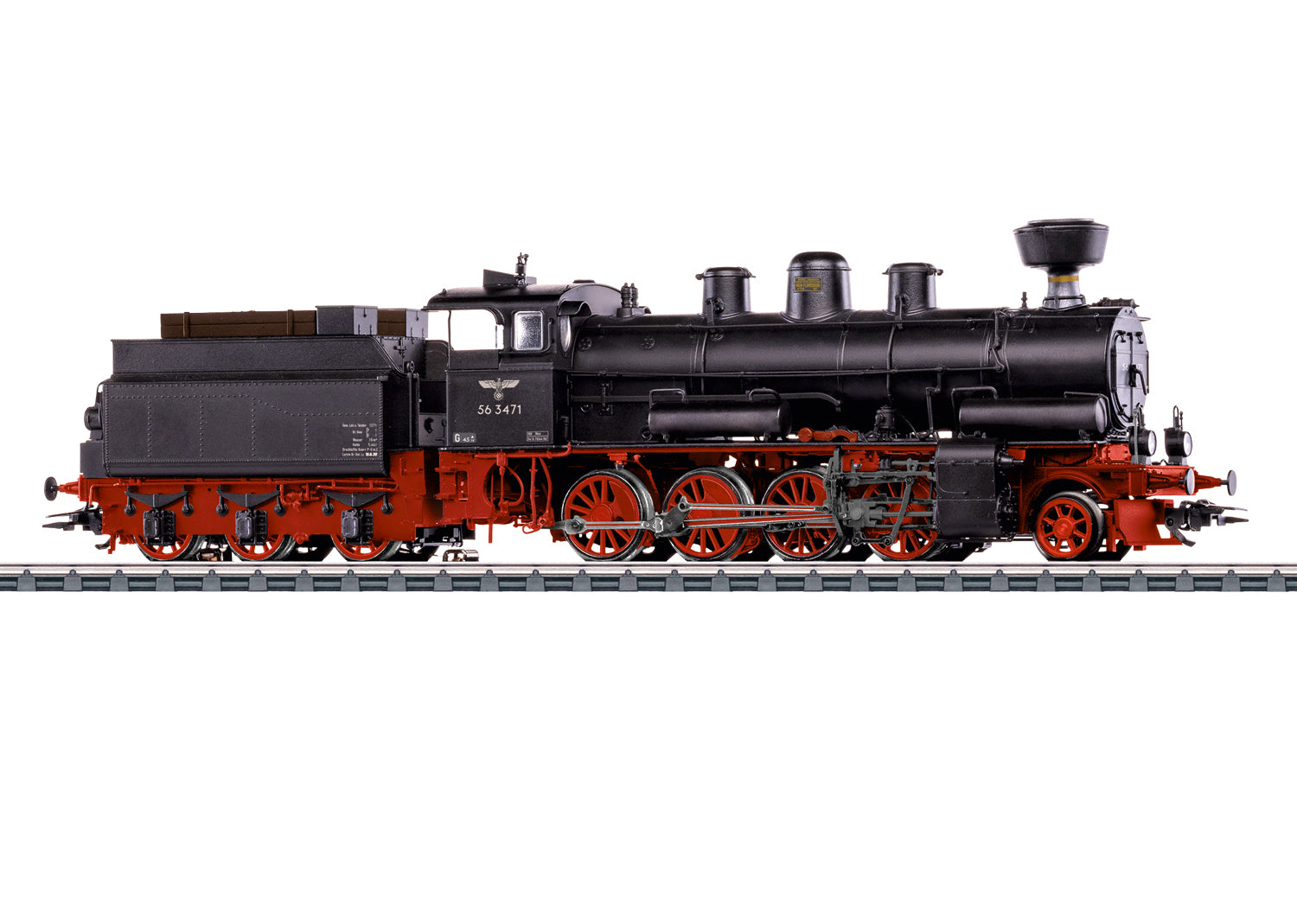

Marklin H0 38270 Class 56.34-35 Steam Locomotive

Prototype: German National Railway (DRB) class 56.34-35 freight steam locomotive with a tender, former class 270 of the Imperial Royal Austrian State Railways (kkStB) and the Austrian Federal Railways (BBÖ). The loco looks as it did after the BBÖ was incorporated into the German National Railway starting in 1938.

Model: The loco has an mfx+ digital decoder and extensive light and sound functions. It also has a controlled high-performance motor with a flywheel, mounted in the boiler. One axle is powered directly, and three axles are driven by coupling rods. Traction tires are fitted. The locomotive and tender are constructed mostly of metal. The loco has a factory-fitted smoke generator with speed-dependent, dynamic smoke exhaust. Dual headlights change over with the direction of travel, will work in conventional operation and can be controlled digitally. The cab lighting, firebox flickering, and running gear lights can be individually controlled in digital operation. Maintenance-free warm-white and red LEDs are used for the lighting. A buffer capacitor is fitted. There is a close coupler with a guide mechanism between the loco and tender. The buffer heights on the loco and tender conform to NEM specifications. The minimum radius for operation is 360 mm / 14-3/16". Protective piston sleeves and brake hoses are supplied. Length over the buffers approximately 20 cm / 7-7/8".
