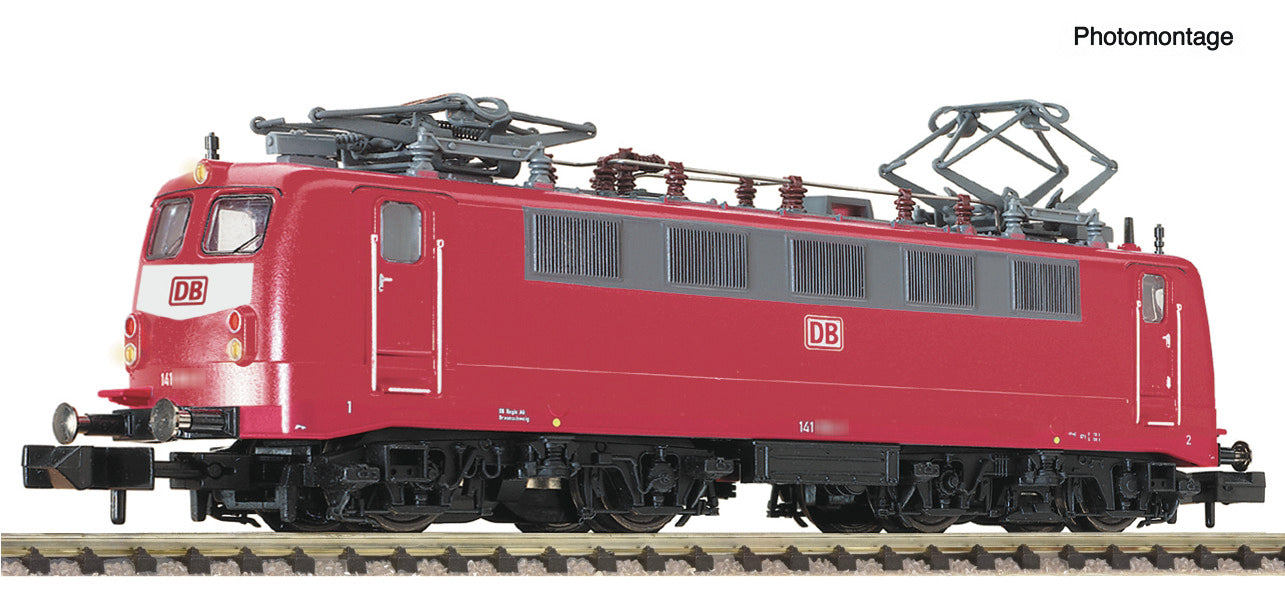

Fleischmann N 7570019 Electric locomotive class 141 DB AG era V DC 2024 New Item

Electric locomotive class 141 of the Deutsche Bahn.

■ Orient red livery with bib
■ Version with double lamps
■ Individually switchable headlight or tail light in digital mode

The machines of class E 41 (from 1968: 141) were first delivered to the German Federal Railway in 1956 for light and mixed service on main lines with a maximum speed of 120 km/h and a continuous power of 2,310 kW. They were the only class in the standard locomotive program to feature a rear derailleur on the low-voltage side of the transformer. The rear derailleur made a characteristic noise that, in addition to the large jumps in traction force, resulted in the nickname "firecracker". From 1987, the locomotives were painted oriental red.

General data

Coupling	NEM shaft 355 without close coupling mechanism
Minimum radius	192 mm
Flywheel	yes
Traction tyres	2
Number of driven axles	4
Scale	N
Epoch	V
Railway Company	DB-AG

Electrical

Motor	3 pole motor
Head light	3 headlight, dependent on the direction of travel/2 tail lights, dependent on the direction of travel
LED head light	yes
Additional light function	yes
Sound	yes
Control	2L - Digital
Interface	Electrical interface for traction units according to NEM 651 standards with plug-in fixture
Digital decoder	NEM 651

Measurements

Length over buffer

98 mm
