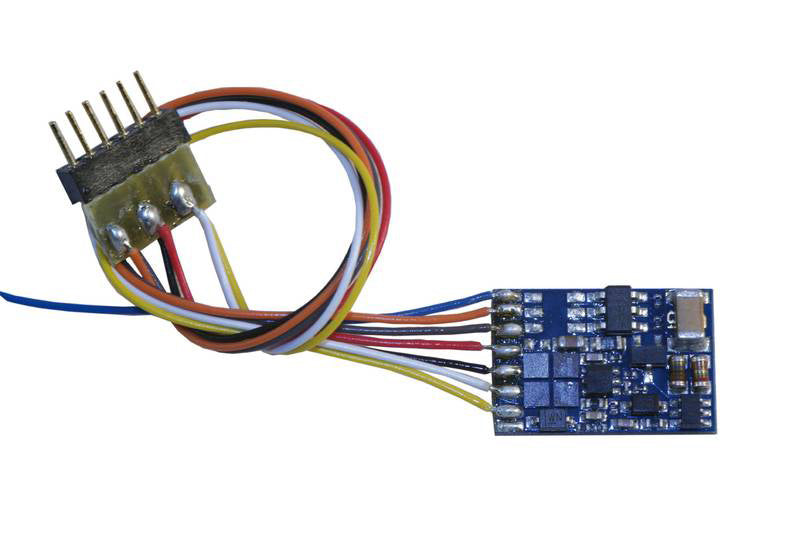

ESU HO 52624 LokPilot Fx micro V3.0, functional decoder MM/DCC/SX, 6-pin plug NEM652, Cables
LokPilot Fx micro V3. 0 Function decoder (MM / DCC / SX), with 6-pin plug NEM651 and KabelbaumDer LokPilot Fx micro V3. 0 has four function outputs, typical features such as interior lighting, head- or ahrtrichtungsabhangiges peak light can be switched on cars, and function models with whom. Selbstverstandlich is LokPilot Fx micro V3. 0 Multiprotokollfahig and with 13.5mm x 9.0mm x 3.5mm small enough to be installed in almost all models. The decoder is supplied with 6-pin NEM 651 connector and wiring harness. Operating Arte Santander LokPilot Fx micro V3. 0 handles DCC with 14, 28 and 128 speed steps as well as Motorola. The decoder recognizes the speed steps automatically. Lenz LG 100, respectively ROCO braking sections as well as Zimo HLU-commands, or braking in DC sections with reversed polarity, or the Marklin braking sections (also for DCC). You can either use short-, or four digit addresses, or assign a consist address. The Motorola protocol enables the LokPilot Fx micro V3. 0 decoder with Marklin stations 6020, 6021, delta, mobile station and central station. The decoder handles addresses 01 - 255 and stay on the Marklin braking section are correct. Between all control modes (Motorola, DCC, DC, AC, Selectrix) The LokPilot Fx micro V3. 0 fully automatic switch during operation. AnalogbetriebMit the LokPilot Fx micro V3. 0-equipped vehicles in the analogue mode uneingeschrankt usable. Function Ender LokPilot Fx micro V3. 0 brings four function outputs, each with 140mA with, each can be assigned individually to a function: Besides beacon, strobe and alternate flashing, there is simulated firebox as well as Mars light or Gyra light for US models. A time-controlled RF output for digital couplings is also available. All function outputs are individually dimmable in 15 steps. Each function output can be placed in DCC operation to any function key between F0 and F12. In Motorola mode F0 to F8 are detected. -Adjusting LokPilot Fx micro V3. 0 supports all DCC programming modes, including POM (main rail programming). For Marklins stations 6020, 6021, mobile station and central station all programming is done electronically. For these units LokPilot Fx micro V3. 0 Decoder a preserved, easily acquired programming procedure. In Motorola mode Any changes you make here also in DCC mode and vice versa. Especially convenient is the setting of parameters for owners of our ECoS command station: On the big screen, all in plain text are displayed and can be changed very easily - even during operation ZusammenspielDer LokPilot Fx micro V3!. 0 is optimal to interaction with the LokSound V3. 5 and the LokPilot V3. 0 decoders designed: It is possible, for example, the locomotive of a trainset with a LokSound V3. 5 decoder and the controlling car with a LokPilot Fx micro V3. 0 equip. Assuming the same address both behave exactly the same. Identical grouping of the CVs facilitates synchronization of both decoders. RailComAb work RailCom is activated. You can with a corresponding station like our ECoS directly auslesenSchutzAlle on the main track CVs function outputs are protected against overload and short circuit. Future eingebautDer LokPilot Fx micro V3. 0 Decoder is firmwareupdatefahig. New software features can always be upgraded in this way with the help of the ESU LokProgrammer.
