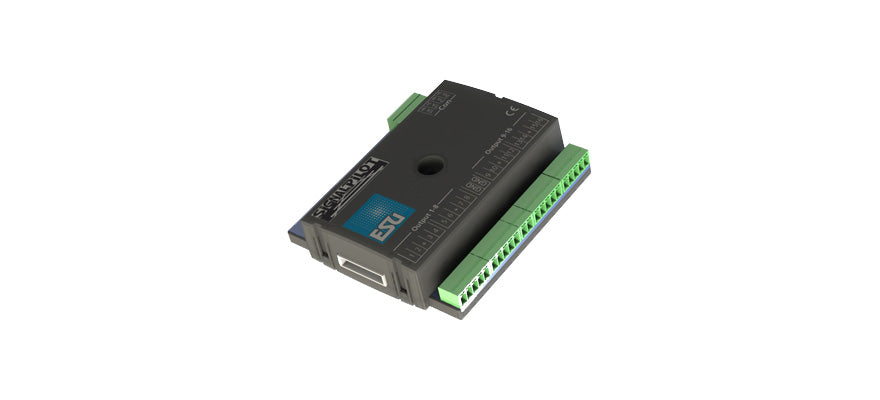

ESU HO 51840 Gauge Neutral SignalPilot, Multi-protocol accessory decoder for controlling signals

SignalPilot.

Multi-protocol accessory decoder designed for controlling signals. Due to its intelligent software it supports DCC and Motorola.

Operational modes:
NMRA/DCC "Accessory decoder" compatible. Motorola® with up to 127 addresses. K83 compatible. Powered either by command staton or separately DC - or AC source (transformer) up to 18V AC.

Outputs:
16 outputs, maximum 250 mA each. Connection by means of removable terminal strips. Push/pull power amplifiers: Each output may be connected individually to either decoder ground or to the common positive return. Individual assignment of decoder addresses to the outputs (Mapping). Lighting effects and brightness can be adjusted individually. Cross-fading and time dependent sequences. Pre-programmed signal aspects. Short circuit and overload protection for all outputs.

LokProgrammer
The configuration of the SignalPilot must be done with the LokProgrammer and the appropriate software. Although all settings could in principle also be accessed via CV programming, this procedure is not recommended or documented due to the complexity.

Dimensions:
86 x 86 x 25 mm (3.39 x 3.39 x 0.98 inch)

Included in delivery:
SignalPilot 51840, detailed instruction manual
