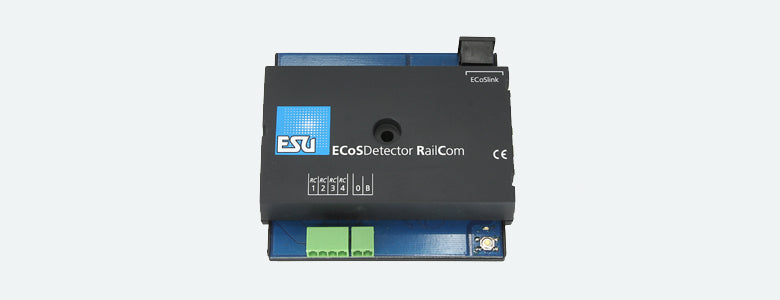

ESU HO 50098 ECoSDetector RC Feedback module, opto, 4 inputs RailCom

Skip to product information
  • ESU HO 50098  ECoSDetector RC Feedback module, opto, 4 inputs RailCom
  • ESU HO 50098  ECoSDetector RC Feedback module, opto, 4 inputs RailCom
ECoSDetector RC. Operational Modes: Direct bus connection to ECoSlink. Operation with ECoS or Central Station Reloaded V3. 0. 0. is Possible. Feedback section 16 feedback modules. Configurable by using jumpers as digital inputs (eg for contact tracks or reed switches) or as track occupancy detectors (current sensor). Galvanical isolation of feedback modules and command stationMax. 3A current load per feedback inputRailCom: 4 of 16 feedback sections can be used as RailCom feedback sections ("local detectors"), If Desired. Recognition of loco address Dimensions: 86mm x 86mm x 25mm (3 39 x 39 x 3 0. 98 inches) Included in delivery: ECoSDetector feedback modules, terminals, ECoSlink bus connection cable, extensive instruction manualECoSDetector StandardOperational modes: Directly connected to ECoSlink bus , Operation with ECoS Command Station and Central Station Reloaded V3. 0. 0 Possible. Feedback section 16 feedback modules as digital inputs (eg for contact tracks or reed switches). Galvanical isolation of feedback modules and command station. Dimensions: 86mm x 86mm x 25mm (3 39 x 39 x 3 0. 98 inches) Included in delivery: ECoSDetector Standard feedback module, terminals, ECoSlink bus connection cable, extensive instruction manualECoSDetector RCOperational modes: Directly connected to ECoSlink bus. Operation with ECoS Command Station and Central Station Reloaded V3. 0. 0 Possible. Feedback section: 4 feedback inputs configured as track occupancy detectors (current sensor). Galvanical isolation of feedback modules and command station. RailCom: 4 feedback sections can be used as RailCom feedback sections ("local detectors"). Recognition of loco address Dimensions: 86mm x 86mm x 25mm (3 39 x 39 x 3 0. 98 inches) Included in delivery: ECoSDetector RC feedback module, terminals, ECoSlink bus connection cable, extensive instruction manualECoSDetector ExtensionOperational modes: Extension Module for ECoSDector , is powered and controlled by it. Transistor outputs are powered externally. Outputs: 32 transistor outputs, 100mA output load each. Construction as "open collector" is connected to ground, total current of all outputs is max. 1. 5ADimensions: 86mm x 86mm x 25mm (3 39 x 39 x 3 0. 98 inches) Included in delivery: ECoSDetector Extension modules, terminals, extensive Instruction Manual
1 of 1

System:
Sound:
Country:
Era:
Railroad:
EAN:
Availability:

Regular price $99.99 USD
Regular price Sale price $99.99 USD
