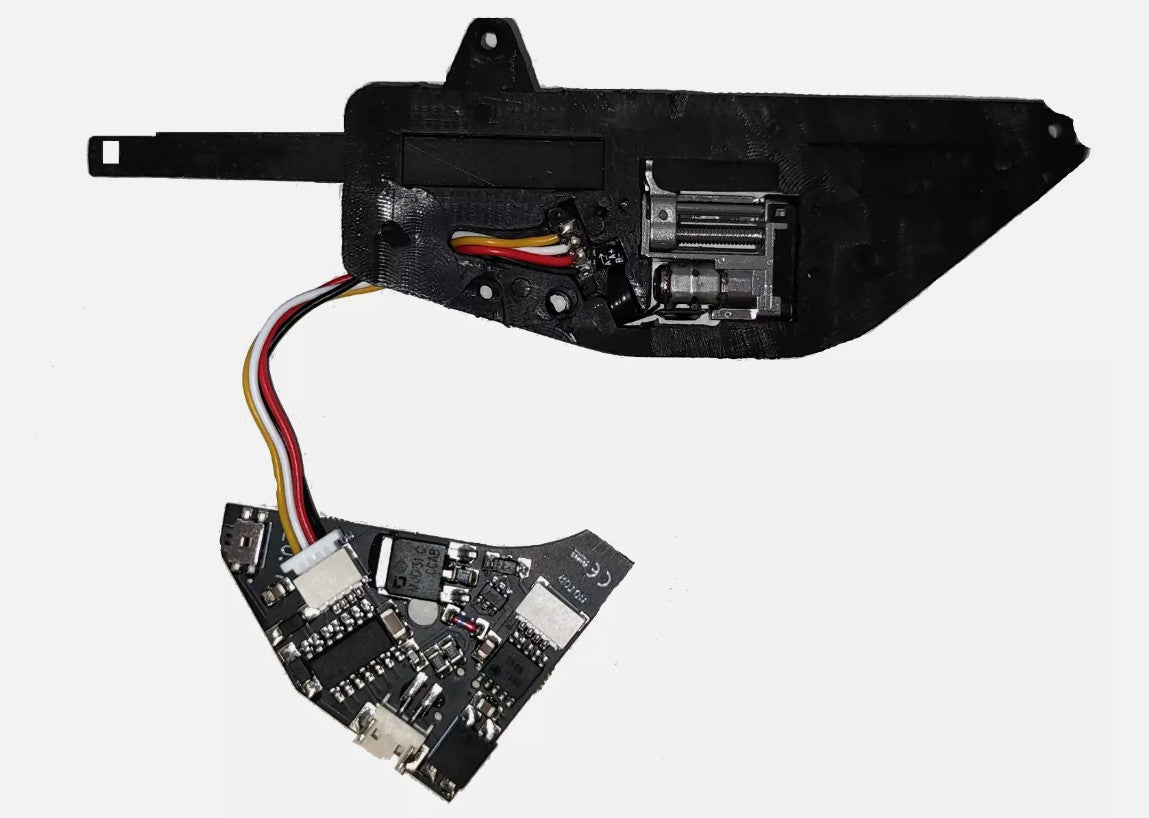

Decoderwerk 80201 Motor+Decoder Switch Drive for Märklin/Trix C track

The low cost alternative made in Germany.

Product Datasheet. In German and English (half way through).

Decoderwerk 80201 provides identical functionality as Marklin 74491 motor combined with 74462 decoder, but for a lot less!

Description

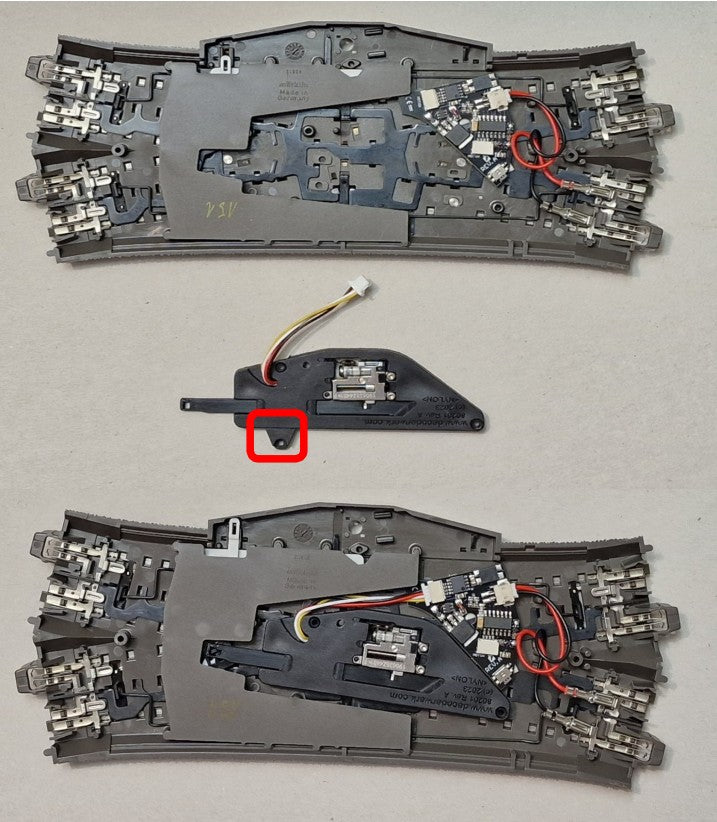

• Märklin C-Track decoders can be directly inserted and connected to the following turnouts. For slim and DKW turnouts, the plastic bars in the turnouts must be removed.
  • Left switch 24611
  • Switch right 24612
  • Slim switch left 24711
  • Slim switch right 24712
  • Curved switch left 24771
  • Curved switch right 24772
  • Curved switch left 24671
  • Curved switch right 24672
  • Double crossing switch 24624

• Trix C-Track: The decoder can be inserted and connected into the following turnouts. The required connecting cable is included. For slim and DKW turnouts, the plastic bars in the turnouts must be removed.
  • Left switch 62611
  • Switch right 62612
  • Slim switch left 62711
  • Slim switch right 62712
  • Curved switch left 62671
  • Curved switch right 62672
  • Slim curved switch left 62771
  • Slim curved switch right 62772
  • Double crossing switch 62624

Tension

• Build up
  • 9-24V track voltage
  The decoder is powered directly by the track voltage. No separate power supply can be connected.
• Performance
  • 9-24V DC voltage
  • 0.2A current
  The light output can be loaded with 0.5A and delivers 9-24V DC voltage.
• Requirement
  • Quiescent current below 10mA
  The decoder itself requires less than 10mA in idle mode. The current consumption of the output depends on the connected device.
• Short circuit The decoders are protected against short circuits with a self-resetting fuse.

Coupling

• Artificial intelligence? A little bit, anyway. The decoder features an automatic learning mode for addressing. All you have to do is press a button and call up the desired addresses on your central unit. Done.
• Remote control: The decoder can be configured directly at its location from a DCC central unit using Programming-on-Main. All CVs can be updated.
• Inspection The decoder can be configured on a DCC programming track. All CVs can be read and written via Direct Mode.

configuration

• Standard: By default, the output takes small steps and moves the motor slowly. The time is adjustable.
• Let there be light The decoder supports the control of the switch lamp and automatically restores the last switching of the switch lamp when the decoder is started.
• Reversed The switch output can be inverted. This allows, for example, opposing switches to be switched with the same address.
• Small steps You can finely adjust the steps that are taken over 4096 steps (front to back) and the rotation time as well.
• On command You can operate the motor manually, via another decoder or even analogically using the 2 contact inputs.

installation

• Connections: The decoder is equipped with all the connecting cables for direct installation into a Märklin C-Track turnout.
  A suitable connecting cable is included for connecting Trix turnouts.

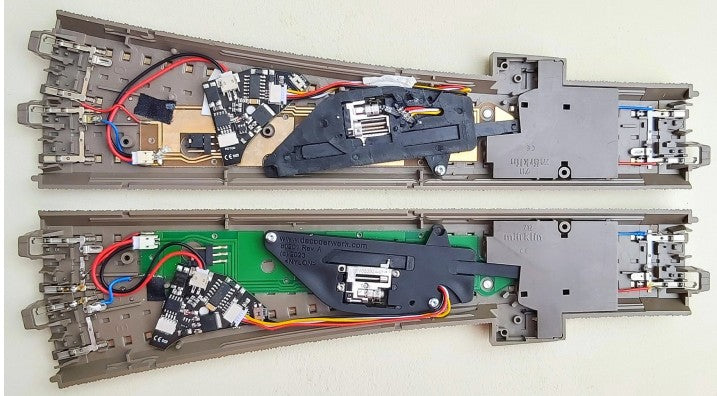

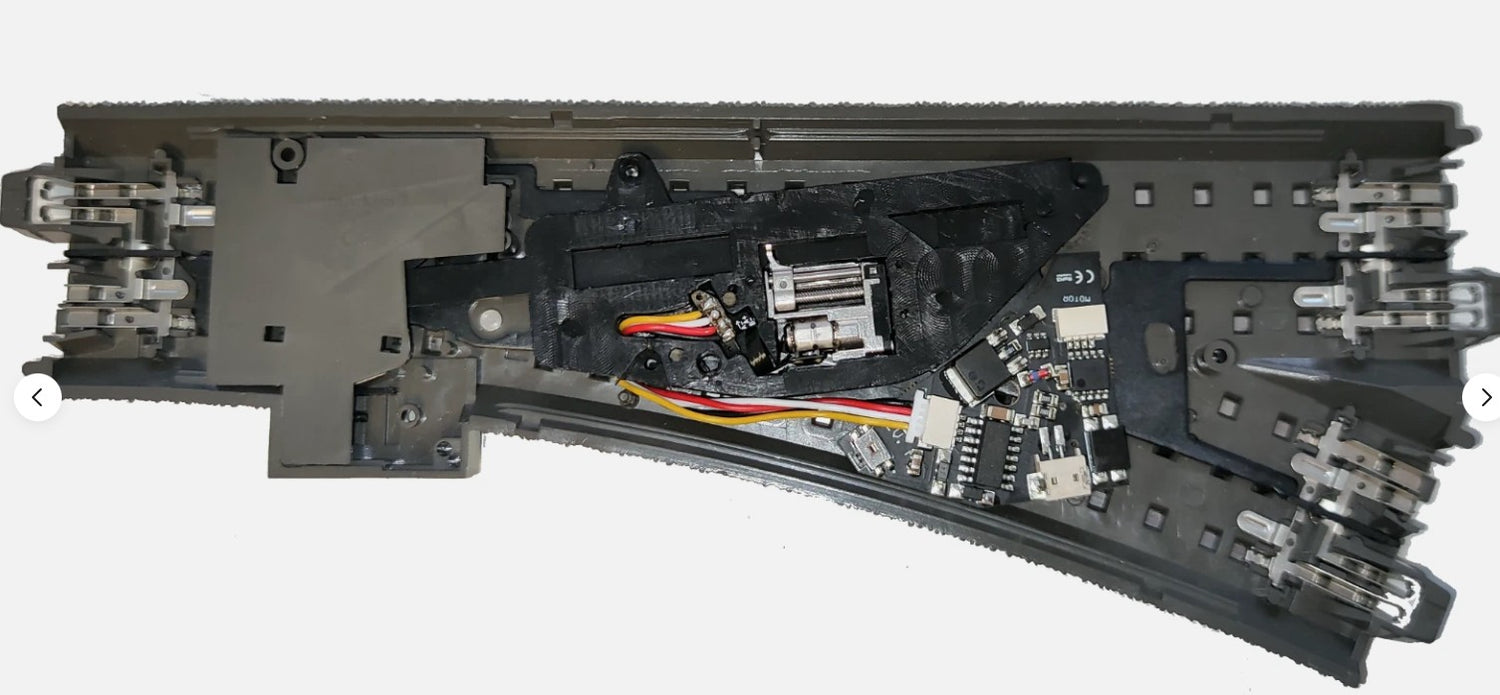

• Mounting: The decoder can be easily mounted inside a Märklin or Trix C-Track turnout. Screws are included. The decoder must be glued behind the motor unit.
