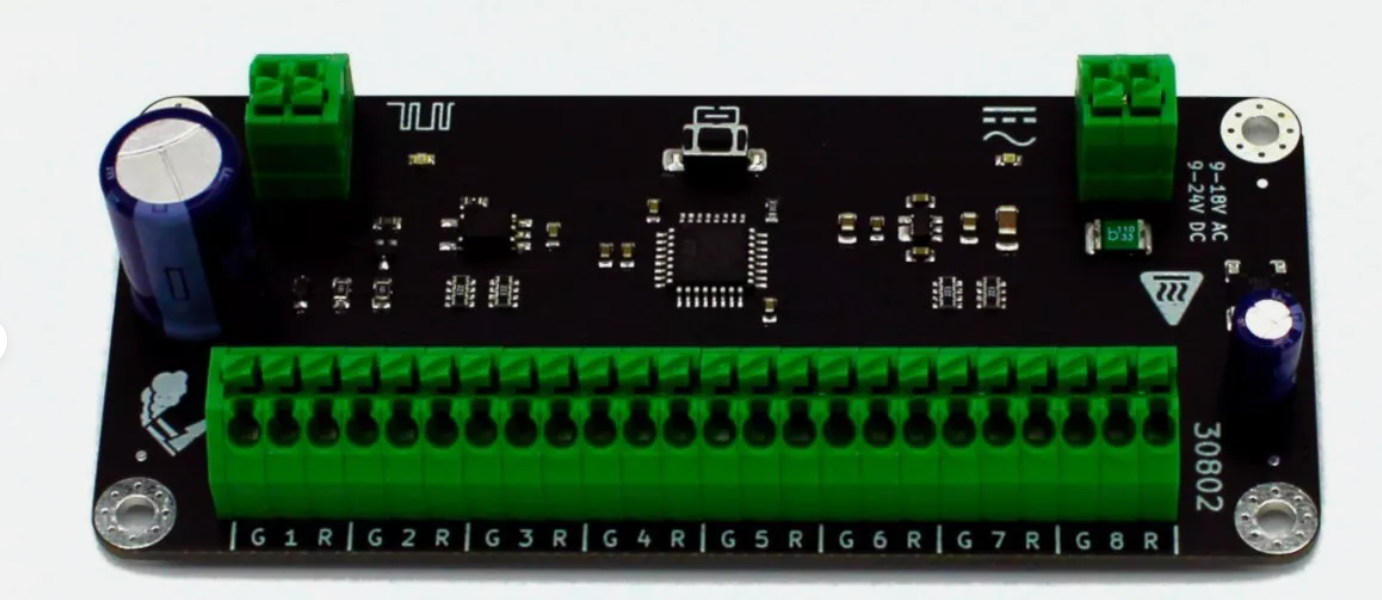

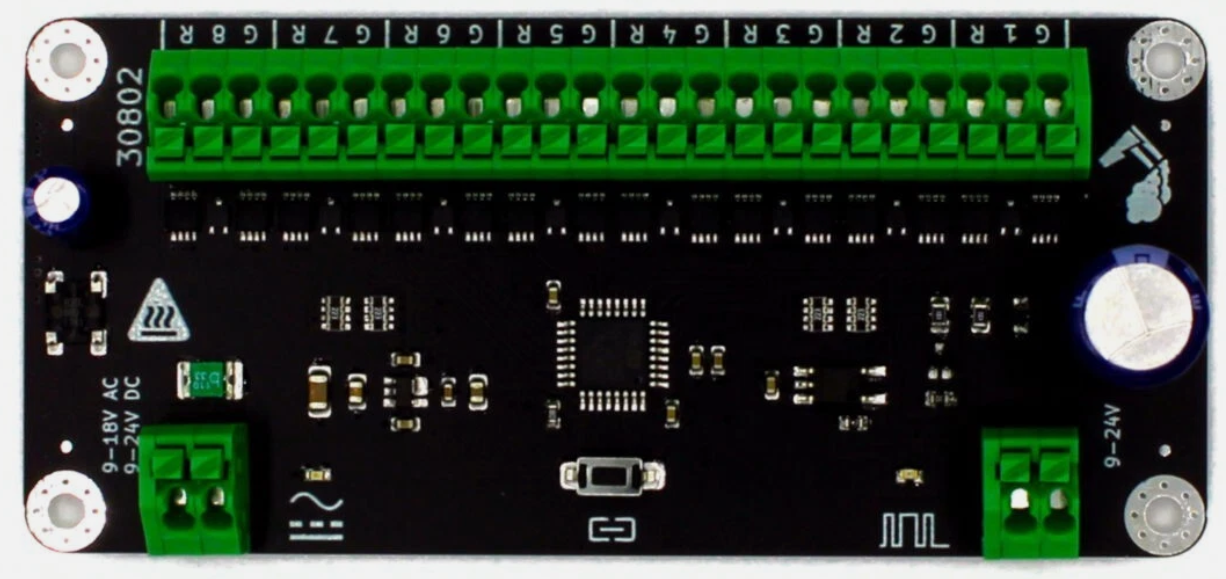

Decoderwerk 30802 K83 Markllin/Others Digital Switch Decoder for up to 8 points/uncouplers with magnetic drives

• The decoder has 8 outputs.
• Operation can be carried out with DCC or Märklin Märklin®.
• The decoder is suitable for switches with double coil drives or uncoupling tracks.
• 100% quality inspection of all decoders
  Development and production in Germany
  We only use components from well-known brand manufacturers

Voltage

• Build
  • 9-24V DC voltage
  • 9-18V AC
  • 9-24V track voltage
  Cost-effective plug-in power supplies can be used. The decoder can also be supplied directly by the track voltage.
• Output
  • 9-24V DC voltage
  • maximum 2A per output
  Each output can be individually loaded with 2A and provides 9-24V DC voltage. The decoder can be loaded with a maximum of 2A in total.
• Consumption
  • Quiescent current below 10mA
  The decoder itself requires less than 10mA in idle mode. The power consumption of the outputs depends on the connected item. We recommend a power supply with 2A.
• Short protectionThe decoders are protected against short circuits with a self-resetting fuse.
• Long Conclusion The decoders have a charge control so that the control panel does not incorrectly diagnose a short circuit at start-up.

Coupling

• Artificial intelligence At least a little. The decoder has an automatic learning mode for addressing. All you have to do is press a button and call up the desired addresses at your command station. Ready.
• Individual Each output can be assigned an individual address. The addresses can be chosen freely.
• Social An address can be assigned more than once. When the address is called, all outputs assigned to this address are switched.
• Remote control The decoder can be configured directly at its place of use from a DCC control panel using programming-on-main. All CVs can be updated.
• Inspection The decoder can be configured on a DCC programming track. All CVs can be read and written via direct mode.

Configuration

• Standard By default, each output generates a switching pulse of 400ms.
• Small steps You can adjust the switching pulse individually. Switching pulses from 10ms to 2,550ms are possible. And that in small steps of 10ms.
• Individual The switching times can be configured individually for each output.
• Uncouple If the switching time is increased, the output remains activated as long as the button on the control panel is pressed. For example, decoupling tracks can be precisely controlled.
• Continues Each output can be configured as continuous operation. The selected output is switched until it is deactivated by selection.

Installation

• Connections Brand terminals from Phoenix Contact for cables of up to 1mm2.
• Turntable The DCC or Märklin Motorola control signal is connected via optocouplers and thus completely isolated galvanically.
• Dimensions 110x50mm, 25mm high
• Fixing 4 mounting holes of size M3. The inner diameter is 3.5mm.
