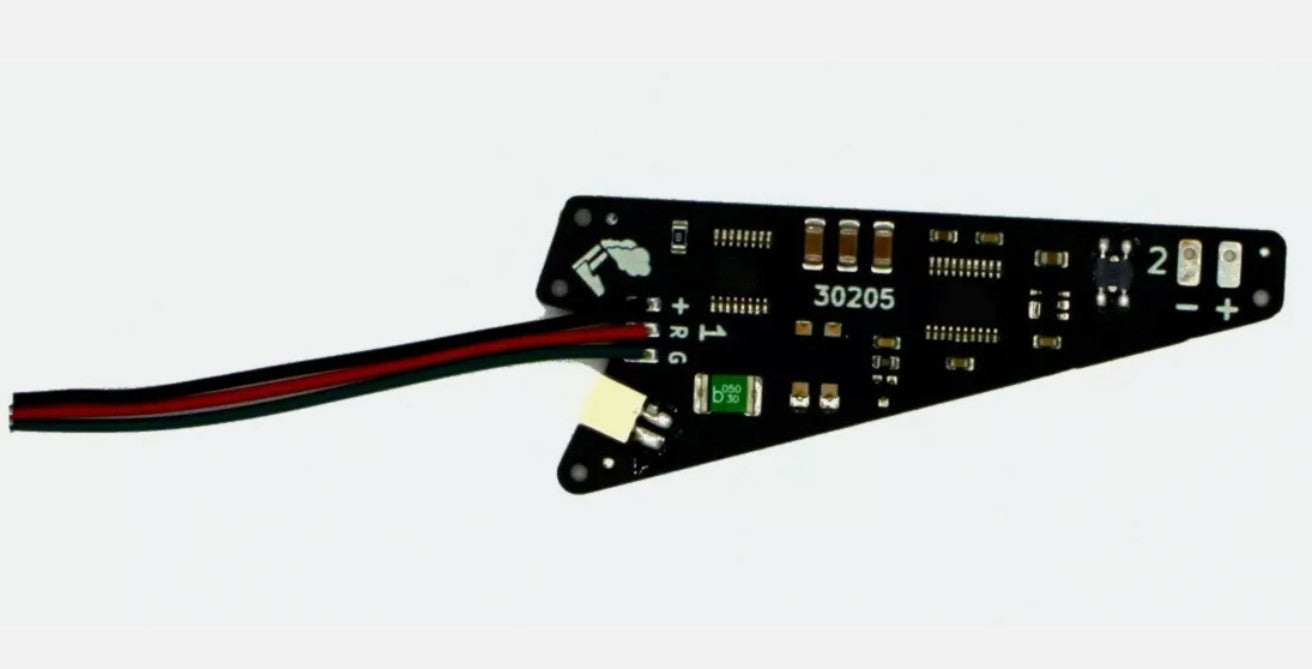

Decoderwerk 30205 MFX Switch Decoder for controlling a Märklin/Trix C-track switch motor

• The decoder has 2 outputs.
• Operation can be done with DCC or Märklin ® Motorola.
• The decoder is suitable for controlling Märklin ® or Trix® C-track turnouts and the optional turnout lantern.
• 100% quality control of all decoders
  Development and production in Germany
  We only use components from well-known brand manufacturers

Compatible

• Decoder The decoder is the ideal alternative for the built-in digital decoders 74460, 74461 and 74462.
• Drives The decoder can be connected directly to the electric point drives 74490, 74491 and 74492.
• Märklin ® C-Track The decoder can be inserted and connected directly into the following turnouts.
  • Left switch 24611
  • Switch right 24612
  • Slim switch left 24711
  • Slim switch right 24712
  • Curved switch left 24771
  • Curved switch right 24772
  • Curved switch left 24671
  • Curved switch right 24672
  • Double crossing switch 24624
• Trix C-Track: The decoder can be inserted and connected to the following turnouts. The required connecting cable is included.
  • Left switch 62611
  • Switch right 62612
  • Slim switch left 62711
  • Slim switch right 62712
  • Curved switch left 62671
  • Curved switch right 62672
  • Slim curved switch left 62771
  • Slim curved switch right 62772
  • Double crossing switch 62624

Tension

• Build up
  • 9-24V track voltage
  The decoder is powered directly by the track voltage. No separate power supply can be connected.
• Performance
  • 9-24V DC voltage
  • 1A current
  The outputs can be loaded with 1A and provide 9-24V DC voltage.
• Requirement
  • Quiescent current below 5mA
  The decoder itself requires less than 5mA in idle mode. The current consumption of the output depends on the connected device.
• Short circuit The decoders are protected against short circuits with a self-resetting fuse.

Coupling

• Artificial intelligence? A little bit, anyway. The decoder features an automatic learning mode for addressing. All you have to do is press a button and call up the desired addresses on your central unit. Done.
• Remote control: The decoder can be configured directly at its location from a DCC central unit using Programming-on-Main. All CVs can be updated.
• Inspection The decoder can be configured on a DCC programming track. All CVs can be read and written via Direct Mode.

configuration

• Standard By default, the output makes small steps with a switching pulse of 400ms.
• Let there be light The decoder supports the control of the switch lamp and automatically restores the last switching of the switch lamp when the decoder is started.
• Reversed The switch output can be inverted. This allows, for example, opposing switches to be switched with the same address.
• Small steps: You can adjust the switching pulse individually. Switching pulses from 10 ms to 2,550 ms are possible, in small increments of 10 ms.

installation

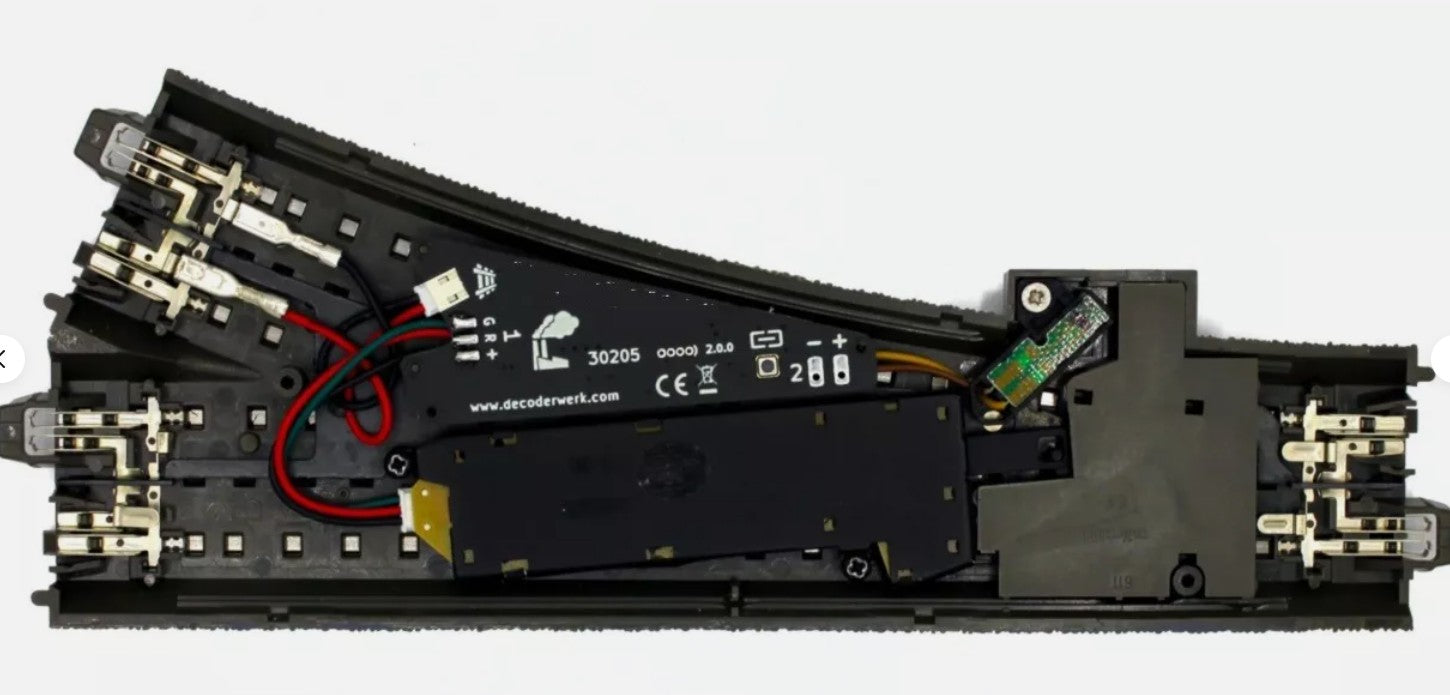

• Connections: The decoder is equipped with all the connecting cables for direct installation into a Märklin C-Track turnout.
  A suitable connecting cable is included for connecting Trix turnouts.
• Mounting The decoder can be easily mounted in the inner bed of a C-track turnout from Märklin or Trix.
